Rangos de corriente: 16 A, 32 A, 63 A y 125 A.

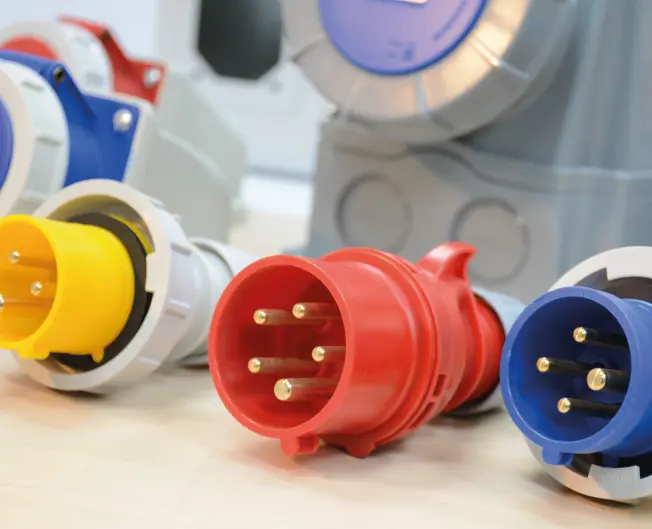

Rangos de voltaje y código de colores:
* Amarillo: 100-130V
* Azul: 200-250V
* Rojo: 380-480V
* Negro: 500-690V
Polos: 2P, 2P+T (1P+N+T), 3P+T, 3P+N+T.
Frecuencia: 50 Hz, 60 Hz, 100-300 Hz, >300-500 Hz.
Grado de Protección IP:
* Las tomas y clavijas de 16 A, 32 A y 63 A, deben cumplir con IP44 o IP67.
* Las tomas y clavijas de 125 A deben cu mplir con IP66 o IP67.
Temperatura de operación: de -25°C a + 80°C (100°C durante una hora).
Las tomas y clavijas VCP de fabricación austriaca están certificadas bajo las normas internacionales IEC 60309-1 e IEC 60309-2, las cuales han sido aceptadas como las normas estándar mundiales para las tomas y clavijas industriales. Por lo tanto, están diseñadas para ser compatibles con los productos de diferentes fabricantes bajo la misma corriente nominal, los mismos rangos de voltaje nominal de trabajo, números de polos y frecuencia.

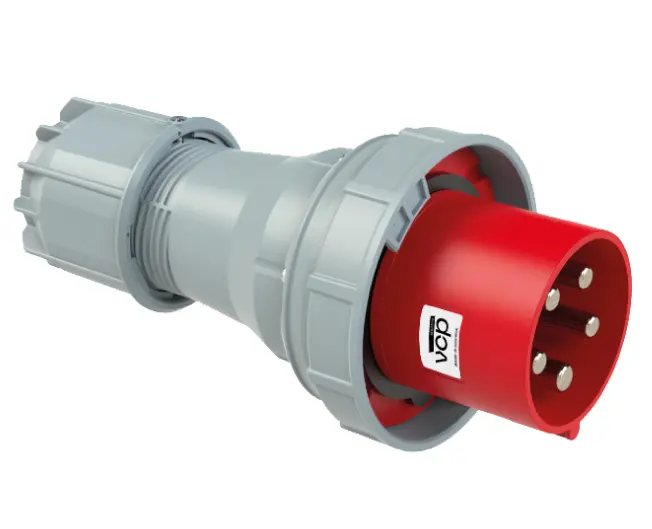

Carcasa
Nuestras tomas y clavijas industriales están construidas en Poliamida 6, un material que tiene las siguientes características:
• Excelente resistencia al impacto combinada con alta rigidez y solidez.
• Alta estabilidad térmica (auto extinguible).
• Muy buenas cualidades de aislamiento.
• Alta resistencia disruptiva.
• Alta resistencia a la abrasión.
• Alta resistencia a la intemperie.
• Muy buena resistencia química.
• Libre de cadmio y halógenos.
• Conforme a la directiva RoHS 2011/65/EU
(Restriction of Hazardous Substances).
Contactos
Están hechos de una aleación de cobre zinc en las tomas y clavijas de 16 A y 32 A; en las de 63 A y 125 A están adicionalmente niquelados. Sus principales características son:
• Alta capacidad de conducción eléctrica 15m (Ω.mm2).
• Alta resistencia a la extensión hasta 500 N/mm2 (MPa).
• Alta resistencia a la corrosión en áreas de atmósfera industrial, agricultura, etc.
• Conformes a la directiva RoSH 2011/65/EU.
• Los polos niquelados ofrecen una resistencia incrementada a la corrosión en áreas marinas, con vapor, con hidruros de sulfuro, lecherías.
Contacto piloto
Para las tomas de 63 A y 125 A la norma indica que deben tener un contacto piloto, el cual es un polo auxiliar ubicado en el centro de las tomas y clavijas y que es empleado como enclavamiento eléctrico para prevenir la conexión o la desconexión bajo carga.
| Código | Referencia | Descripción |
|---|---|---|
| TCV0001 | TSP16/114-6 | TOMA TSP16/114-6 SOBREPONER 16AMP, 440V, 3P+T, ROJA |
| TCV0002 | TIN16/414-6 | TOMA TIN16/414-6 INCRUSTAR 16AMP, 440V, 3P+T, ROJA |
| TCV0003 | TAR16/214-6 | TOMA TAR16/214-6 AEREA 16AMP, 440V, 3P+T, ROJA |
| TCV0004 | TSP32/124-6 | TOMA TSP32/124-6 SOBREPONER 32AMP, 440V, 3P+T, ROJA |
| TCV0005 | TIN32/424-6 | TOMA TIN32/424-6 INCRUSTAR 32AMP, 440V, 3P+T, ROJA |
| TCV0006 | TAR32/224-6 | TOMA TAR32/224-6 AEREA 32AMP, 440V,3P+T, ROJA |
| TCV0007 | TSP63/1345-6 | TOMA TSP63/1345-6 SOBREPONER 63AMP, 440V, 3P+T, ROJA |
| TCV0008 | TAR63/2345-6 | TOMA TAR63/2345-6 AEREA 63AMP, 440V, 3P+T, ROJA |
| TCV0009 | TSP125/1445-6 | TOMA TSP125/1445-6 SOBREPONER 125AMP, 440V, 3P+T, ROJA |
| TCV0010 | TAR125/2445-6 | TOMA TAR125/2445-6 AEREA 125AMP, 440V, 3P+T, ROJA |
| TCV0011 | CLA16/014-6 | CLAVIJA CLA16/014-6, 16AMP, IP44, 3P+T, 440VAC ROJA |
| TCV0012 | CLA32/024-6 | CLAVIJA CLA32/024-6, 32AMP, IP44, 3P+T, 440VAC ROJA |
| TCV0013 | CLA63/034-6 | CLAVIJA CLA63/034-6, 63AMP, IP67, 3P+T, 440VAC ROJA |
| TCV0014 | CLA125/044-6 | CLAVIJA CLA125/044-6, 125AMP, IP67, 3P+T, 440VAC ROJA |
| TCV0015 | TSP16/115-6 | TOMA TSP16/115-6 SOBREPONER 16AMP, 440V, 3P+T+N, ROJA |
| TCV0016 | TAR16/215-6 | TOMA TAR16/215-6 AREA 16AMP, 440V, 3P+T+N, ROJA |
| TCV0017 | TSP32/125-6 | TOMA TSP32/125-6 SOBREPONER 32AMP, 440V, 3P+T+N, ROJA |
| TCV0018 | TAR32/225-6 | TOMA TAR32/225-6 AREA 32AMP, 440V, 3P+T+N, ROJA |
| TCV0019 | TIN32/425-6 | TOMA TIN32/425-6 INCRUSTAR 32AMP, 440V, 3P+T+N, ROJA |
| TCV0020 | TSP63/1355-6 | TOMA TSP63/1355-6 SOBREPONER 63AMP, 440V,3P+T+N, ROJA |
| TCV0021 | CLA16/015-6 | CLAVIJA CLA16/015-6, 16AMP, IP44, 3P+T+N, 440VAC ROJA |
| TCV0022 | CLA32/025-6 | CLAVIJA CLA32/025-6, 32AMP, IP44, 3P+T+N, 440VAC ROJA |
| TCV0023 | CLA63/035-6 | CLAVIJA CLA63/035-6, 63AMP, IP67, 3P+T+N, 440VAC ROJA |
| TCV0024 | TSP16/113-6 | TOMA TSP16/113-6 SOBREPONER, 16AMP, 230V, 2P+T, AZUL |
| TCV0025 | TAR16/213-6 | TOMA TAR16/213-6 AEREA 16AMP, 230V, 2P+T, AZUL |
| TCV0026 | CLA16/013-6 | CLAVIJA CLA16/013-6, 16AMP, IP44 2P+T, 230VAC AZUL |
| TCV0027 | TSP16/114-9 | TOMA TSP16/114-9 SOBREPONER 16AMP, 230V, 3P+T, AZUL |
| TCV0028 | TAR16/214-9 | TOMA TAR16/214-9 AEREA 16AMP, 3P+T, AZUL |
| TCV0029 | TSP32/124-9 | TOMA TSP32/124-9 SOBREPONER 32AMP,3P+T,AZUL |
| TCV0030 | TAR32/224-9 | TOMA TAR32/224-9 AEREA 32AMP, 3P+T, AZUL |
| TCV0031 | TSP63/1345-9 | TOMA TSP63/1345-9 SOBREPONER 63AMP, 230V, 3P+T, AZUL |
| TCV0032 | TIN63/4345-9 | TOMA TIN63/4345-9 INCRUSTAR 63AMP, 230V, 3P+T, AZUL |
| TCV0033 | TAR63/2345-9 | TOMA TAR63/2345-9 AEREA 63AMP, 230V, 3P+T, AZUL |
| TCV0034 | TSP125/1445-9 | TOMA TSP125/144-9 SOBREPONER 125AMP, 230V, 3P, AZUL |
| TCV0035 | TIN125/4445-9 | TOMA TIN125/4445-9 INCRUSTAR 125AMP, 230V, 3P+T, AZUL |
| TCV0036 | TAR125/244-9 | TOMA TAR125/244-9 AEREA 125AMP, 230V, 3P+T, AZUL |
| TCV0037 | CLA16/014-9 | CLAVIJA CLA16/014-9, 16AMP, IP44, 3P+T, 230 VAC AZUL |
| TCV0038 | CLA32/024-9 | CLAVIJA CLA32/024-9, 32AMP, IP 44, 3P+T, 230VAC AZUL |
| TCV0039 | CLA63/034-9 | CLAVIJA CLA63/034-9, 63AMP, IP67, 3P+T, 230VAC AZUL |
| TCV0040 | CLA125/044-9 | CLAVIJA CLA125/044-9, 125AMP, IP67, 3P+T, 230VAC AZUL |
| TCV0041 | TSP16/115-9 | TOMA TSP16/115-9 SOBREPONER 16AMP, 230V, 3P+T+N, AZUL |
| TCV0042 | TAR16/215-9 | TOMA TAR16/215-9 AEREA 16AMP, 230V, 3P+T+N, AZUL |
| TCV0043 | TSP32/125-9 | TOMA TSP32/125-9 SOBREPONER 32AMP, 230V, 3P+T+N, AZUL |
| TCV0044 | TAR32/225-9 | TOMA TAR32/225-9 AEREA 32AMP, 230V, 3P+T+N, AZUL |
| TCV0045 | TSP63/1355-9 | TOMA TSP63/1355-9 SOBREPONER 63AMP, 230V, 3P+T+N, AZUL |
| TCV0046 | TIN63/4355-9 | TOMA TIN63/4355-9 INCRUSTAR 63AMP, 230V, 3P+T+N, AZUL |
| TCV0047 | TAR63/2355-9 | TOMA TAR63/2355-9 AEREA 63AMP, 3P+T+N, AZUL |
| TCV0048 | TSP125/1455-9 | TOMA TSP125/1455-9 SOBREPONER 125AMP, 3P+T+N, AZUL |
| TCV0049 | TIN125/4455-9 | TOMA TIN125/4455-9 INCRUSTAR 125AMP, 3P+T+N, AZUL |
| TCV0050 | TAR125/2455-9 | TOMA TAR125/2455-9 AEREA 125AMP, 3P+T+N, AZUL |
| TCV0051 | CLA16/015-9 | CLAVIJA CLA16/015-9, 16AMP, IP44, 3P+T+N, 230VAC AZUL |
| TCV0052 | CLA32/025-9 | CLAVIJA CLA32/025-9, 32AMP, IP44, 3P+T+N, 230VAC AZUL |
| TCV0053 | CLA63/035-9 | CLAVIJA CLA63/035-9, 63AMP, IP67, 3P+T+N, 230VAC AZUL |
| TCV0054 | CLA125/045-9 | CLAVIJA CLA125/045-9, 125AMP, IP67, 4P+T+N, 230VAC AZUL |
| TCV0057 | TSP125/1455-6 | TOMA TSP125/1455-6 SOBREPONER 125AMP, 440VAC, 125A,ROJA |
| TCV0058 | TIN125/4455-6 | TOMA TIN125/4455-6 INCRUSTAR, 440VAC, 125A, ROJA |
| TCV0059 | TAR125/2455-6 | TOMA TAR125/2455-6 AREA 440VAC, 125A,ROJA |
| TCV0060 | TAR63/2355-6 | TOMA TAR63/2355-6 AREA 440VAC, 63A, ROJA |
| TCV0061 | TIN125/4445-6 | TOMA TIN125/4445-6 INCRUSTAR 440VAC, 125A,ROJA |
| TCV0062 | TIN63/4345-6 | TOMA TIN63/4345-6 INCRUSTAR 440VAC, 63A,ROJA |
| TCV0063 | TIN63/4355-6 | TOMA TIN63/4355-6 INCRUSTAR 440VAC, 63A, ROJA |
| TCV0064 | TIN16/413-6 | TOMA TIN16/413-6 INCRUSTAR 220VAC, 16A,AZUL |
| TCV0065 | TIN16/414-9 | TOMA TIN16/414-9 INCRUSTAR 220VAC, 16A,AZUL |
| TCV0066 | TIN32/424-9 | TOMA TIN32/424-9 INCRUSTAR 220VAC, 32A, AZUL |
| TCV0067 | TIN16/415-9 | TOMA TIN16/415-9 INCRUSTAR 220VAC, 16A,AZUL |
| TCV0068 | TIN32/425-9 | TOMA TIN32/425-9 INCRUSTAR 220VAC, 32A,AZUL |
| TCV0069 | TIN16/415-6 | TOMA TIN16/415-6 INCRUSTAR 440VAC, 16A,ROJA |
| TCV0070 | CLA125/045-6 | CLAVIJA CLA125/045-6, 125AMP,3P+T+N, 440VAC ROJA |
| TCV0077 | TSP16/113-4 | TOMA TSP16/113-4 SOBREPONER 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0078 | TAR16/213-4 | TOMA TAR16/213-4 AEREA 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0079 | TIN16/413-4 | TOMA TIN16/413-4 INCRUSTAR 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0080 | CLA16/013-4 | CLAVIJA CLA16/013-4 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0081 | TSP32/123-4 | TOMA TSP32/123-4, SOBREPONER 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0082 | TAR32/223-4 | TOMA TAR32/223-4 AEREA 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0083 | TIN32/423-4 | TOMA TIN32/423-4 INCRUSTAR 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0084 | CLA32/023-4 | CLAVIJA CLA32/023-4 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0093 | TSP16/1132-4 | TOMA TSP16/1132-4 SOBREPONER 16A,110V,2P+T,AMARILLO,IP67 |
| TCV0094 | TAR16/2132-4 | TOMA TAR16/2132-4 AEREA 16A,110V,2P+T,AMARILLO,IP67 |
| TCV0095 | TIN16/4132-4f78 | TOMA TIN16/4132-4f78 INCRUSTAR 16A,110V,2P+T,AMARILLO,IP6 |
| TCV0096 | CLA16/0132-4 | CLAVIJA CLA16/0132-4 16A,110V,2P+T,AMARILLO,IP67 |
| TCV0097 | TSP32/1232-4 | TOMA TSP32/1232-4, SOBREPONER 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0098 | TAR32/2232-4 | TOMA TAR32/2232-4 AEREA 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0099 | TIN32/4232-4f78 | TOMA TIN32/4232-4F78 INCRUSTAR 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0100 | CLA32/0232-4 | CLAVIJA CLA32/0232-4 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0109 | TSP16/1132-6 | TOMA TSP16/1132-6 SOBREPONER 16A,220V,2P+T,AZUL,IP67 |
| TCV0110 | TAR16/2132-6 | TOMA TAR16/2132-6 AEREA 16A,220V,2P+T,AZUL,IP67 |
| TCV0111 | TIN16/4132-6f78 | TOMA TIN16/4132-6f78 INCRUSTAR 16A,220V,2P+T,AZUL,IP67 |
| TCV0112 | CLA16/0132-6 | CLAVIJA CLA16/0132-6 16A,220V,2P+T,AZUL,IP67 |
| TCV0113 | TSP16/1142-9 | TOMA TSP16/1142-9 SOBREPONER 16A,220V,3P+T,AZUL,IP67 |
| TCV0114 | TAR16/2142-9 | TOMA TAR16/2142-9 AEREA 16A,220V,3P+T,AZUL,IP67 |
| TCV0115 | TIN16/4142-9f78 | TOMA TIN16/4142-9f78 INCRUSTAR 16A,220V,3P+T,AZUL,IP67 |
| TCV0116 | CLA16/0142-9 | CLAVIJA CLA16/0142-9 16A,220V,3P+T,AZUL,IP67 |
| TCV0117 | TSP32/1242-9 | TOMA TSP32/1242-9 SOBREPONER 32A,220V,3P+T,AZUL,IP67 |
| TCV0118 | TAR32/2242-9 | TOMA TAR32/2242-9 AEREA 32A,220V,3P+T,AZUL,IP67 |
| TCV0119 | TIN32/4242-9f78 | TOMA TIN32/4242-9f78 INCRUSTAR 32A,220V,3P+T,AZUL,IP67 |
| TCV0120 | CLA32/0242-9 | CLAVIJA CLA32/0242-9 32A,220V,3P+T,AZUL,IP67 |
| TCV0121 | TSP16/1152-9 | TOMA TSP16/1152-9 SOBREPONER 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0122 | TAR16/2152-9 | TOMA TAR16/2152-9 AEREA 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0123 | TIN16/4152-9f78 | TOMA TIN16/4152-9f78 INCRUSTAR 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0124 | CLA16/0152-9 | CLAVIJA CLA16/0152-9 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0125 | TSP32/1252-9 | TOMA TSP32/1252-9 SOBREPONER 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0126 | TAR32/2252-9 | TOMA TAR32/2252-9 AEREA 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0127 | TIN32/4252-9f78 | TOMA TIN32/4252-9f78 INCRUSTAR 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0128 | CLA32/0252-9 | CLAVIJA CLA32/0252-9 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0129 | TSP16/1142-6 | TOMA TSP16/1142-6 SOBREPONER 16A,440V,3P+T,ROJO,IP67 |
| TCV0130 | TAR16/2142-6 | TOMA TAR16/2142-6 AEREA 16A,440V,3P+T,ROJO,IP67 |
| TCV0131 | TIN16/4142-6F78 | TOMA TIN16/4142-6f78 INCRUSTAR 16A,440V,3P+T,ROJO,IP67 |
| TCV0132 | CLA16/0142-6 | CLAVIJA CLA16/0142-6 16A,440V,3P+T,ROJO,IP67 |
| TCV0133 | TSP32/1242-6 | TOMA TSP32/1242-6 SOBREPONER 32A,440V,3P+T,ROJO,IP67 |
| TCV0134 | TAR32/2242-6 | TOMA TAR32/2242-6 AEREA 32A,440V,3P+T,ROJO,IP67 |
| TCV0135 | TIN32/4242-6f78 | TOMA TIN32/4242-6f78 INCRUSTAR 32A,440V,3P+T,ROJO,IP67 |
| TCV0136 | CLA32/0242-6 | CLAVIJA CLA32/0242-6 32A,440V,3P+T,ROJO,IP67 |
| TCV0137 | TSP16/1152-6 | TOMA TSP16/1152-6 SOBREPONER 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0138 | TAR16/2152-6 | TOMA TAR16/2152-6 AEREA 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0139 | TIN16/4152-6f78 | TOMA TIN16/4152-6f78 INCRUSTAR 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0140 | CLA16/0152-6 | CLAVIJA CLA16/0152-6 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0141 | TSP32/1252-6 | TOMA TSP32/1252-6 SOBREPONER 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0142 | TAR32/2252-6 | TOMA TAR32/2252-6 AEREA 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0143 | TIN32/4252-6f78 | TOMA TIN32/4252-6f78 INCRUSTAR 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0144 | CLA32/0252-6 | CLAVIJA CLA32/0252-6 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0153 | CLA32/023-6 | CLAVIJA CLA32/023-6,32A,230V,2P+T,AZUL,IP44 |
| TCV0154 | TAR32/223-6 | TOMA AEREA TAR32/223-6,32A,230V,2P+T,AZUL,IP44 |
| TCV0155 | TAR16/214-7 | TOMA AEREA TAR16/214-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0156 | TSP16/114-7 | TOMA S/P TSP16/114-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0157 | TIN16/414-7 | TOMA INC.TIN16/414-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0158 | CLA16/014-7 | CLAVIJA CLA16/014-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0159 | TAR32/224-7 | TOMA AEREA TAR32/224-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0160 | TSP32/124-7 | TOMA S/P TSP32/124-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0161 | TIN32/424-7 | TOMA INC.TIN32/424-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0162 | CLA32/024-7 | CLAVIJA CLA32/024-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0163 | TAR63/2345-7 | TOMA AEREA TAR63/2345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0164 | TSP63/1345-7 | TOMA S/P TSP63/1345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0164 | TSP63/1345-7 | TOMA S/P TSP63/1345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0165 | TIN63/4345-7 | TOMA INC.TIN63/4345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0166 | CLA63/034-7 | CLAVIJA CLA63/034-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0167 | TAR32/2252-7 | TOMA AÉREA TAR32/2252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0168 | TSP32/1252-7 | TOMA S/P TSP32/1252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0169 | TIN32/4252-7 | TOMA INC.TIN32/4252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0170 | CLA32/0252-7 | CLAVIJA CLA32/0252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0171 | TSP32/123-6 | TOMA TSP32/123-6 SOBREPONER 32AMP, 220V, 2P+T, AZUL |
| TCV0172 | TIN32/423-6 | TOMA TIN32/423-6 INCRUSTAR 32A,220V,2P+T,AZUL, IP44 |
| TCV0173 | TAR32/2242-3V | TOMA TAR32/2242-3V AEREA CONTENEDOR 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0174 | TIN32/4242-3F78V | TOMA TIN32/4242-3F78V INCRUSTA CONTENEDOR 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0175 | CLA32/0242-3V | CLAVIJA CLA32/0242-3V CONTENEDOR 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0176 | TSP32/1242-3V | TOMA TSP32/1242-3V SOBREPONER CONT. 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0177 | CLA125/0445-7 | CLAVIJA CLA125/0445-7, 125 AMP, 3P+T, NEGRA, IP67 |
| TCV0178 | TAR125/2445-7 | TOMA AEREA TAR125/2445-7, 125 AMP, 3P+T, IP67 |
| TCV0180 | CLA32/6242-6 | CLAVIJA CLA32/6242-6 32A,440V,3P+T,ROJA,IP67 |
| TCV0181 | CLA32/6242-9 | CLAVIJA CLA32/6242-9 32A,220V,3P+T,AZUL,IP67 |
| TCV0182 | CLA63/634-6 | CLAVIJA CLA63/634-6 63A,440V,3P+T,ROJA,IP67,POWER TWIST |
| TCV0183 | CLA63/634-9 | CLAVIJA CLA63/634-9 63A,220V,3P+T,AZUL,IP67,POWER TWIST |
Rangos de corriente: 16 A, 32 A, 63 A y 125 A.
Rangos de voltaje y código de colores:
* Amarillo: 100-130V
* Azul: 200-250V
* Rojo: 380-480V
* Negro: 500-690V
Polos: 2P, 2P+T (1P+N+T), 3P+T, 3P+N+T.
Frecuencia: 50 Hz, 60 Hz, 100-300 Hz, >300-500 Hz.
Grado de Protección IP:
* Las tomas y clavijas de 16 A, 32 A y 63 A, deben cumplir con IP44 o IP67.
* Las tomas y clavijas de 125 A deben cu mplir con IP66 o IP67.
Temperatura de operación: de -25°C a + 80°C (100°C durante una hora).
Las tomas y clavijas VCP de fabricación austriaca están certificadas bajo las normas internacionales IEC 60309-1 e IEC 60309-2, las cuales han sido aceptadas como las normas estándar mundiales para las tomas y clavijas industriales. Por lo tanto, están diseñadas para ser compatibles con los productos de diferentes fabricantes bajo la misma corriente nominal, los mismos rangos de voltaje nominal de trabajo, números de polos y frecuencia.
Carcasa
Nuestras tomas y clavijas industriales están construidas en Poliamida 6, un material que tiene las siguientes características:
• Excelente resistencia al impacto combinada con alta rigidez y solidez.
• Alta estabilidad térmica (auto extinguible).
• Muy buenas cualidades de aislamiento.
• Alta resistencia disruptiva.
• Alta resistencia a la abrasión.
• Alta resistencia a la intemperie.
• Muy buena resistencia química.
• Libre de cadmio y halógenos.
• Conforme a la directiva RoHS 2011/65/EU
(Restriction of Hazardous Substances).
Contactos
Están hechos de una aleación de cobre zinc en las tomas y clavijas de 16 A y 32 A; en las de 63 A y 125 A están adicionalmente niquelados. Sus principales características son:
• Alta capacidad de conducción eléctrica 15m (Ω.mm2).
• Alta resistencia a la extensión hasta 500 N/mm2 (MPa).
• Alta resistencia a la corrosión en áreas de atmósfera industrial, agricultura, etc.
• Conformes a la directiva RoSH 2011/65/EU.
• Los polos niquelados ofrecen una resistencia incrementada a la corrosión en áreas marinas, con vapor, con hidruros de sulfuro, lecherías.
Contacto piloto
Para las tomas de 63 A y 125 A la norma indica que deben tener un contacto piloto, el cual es un polo auxiliar ubicado en el centro de las tomas y clavijas y que es empleado como enclavamiento eléctrico para prevenir la conexión o la desconexión bajo carga.
| Código | Referencia | Descripción |
|---|---|---|
| TCV0001 | TSP16/114-6 | TOMA TSP16/114-6 SOBREPONER 16AMP, 440V, 3P+T, ROJA |
| TCV0002 | TIN16/414-6 | TOMA TIN16/414-6 INCRUSTAR 16AMP, 440V, 3P+T, ROJA |
| TCV0003 | TAR16/214-6 | TOMA TAR16/214-6 AEREA 16AMP, 440V, 3P+T, ROJA |
| TCV0004 | TSP32/124-6 | TOMA TSP32/124-6 SOBREPONER 32AMP, 440V, 3P+T, ROJA |
| TCV0005 | TIN32/424-6 | TOMA TIN32/424-6 INCRUSTAR 32AMP, 440V, 3P+T, ROJA |
| TCV0006 | TAR32/224-6 | TOMA TAR32/224-6 AEREA 32AMP, 440V,3P+T, ROJA |
| TCV0007 | TSP63/1345-6 | TOMA TSP63/1345-6 SOBREPONER 63AMP, 440V, 3P+T, ROJA |
| TCV0008 | TAR63/2345-6 | TOMA TAR63/2345-6 AEREA 63AMP, 440V, 3P+T, ROJA |
| TCV0009 | TSP125/1445-6 | TOMA TSP125/1445-6 SOBREPONER 125AMP, 440V, 3P+T, ROJA |
| TCV0010 | TAR125/2445-6 | TOMA TAR125/2445-6 AEREA 125AMP, 440V, 3P+T, ROJA |
| TCV0011 | CLA16/014-6 | CLAVIJA CLA16/014-6, 16AMP, IP44, 3P+T, 440VAC ROJA |
| TCV0012 | CLA32/024-6 | CLAVIJA CLA32/024-6, 32AMP, IP44, 3P+T, 440VAC ROJA |
| TCV0013 | CLA63/034-6 | CLAVIJA CLA63/034-6, 63AMP, IP67, 3P+T, 440VAC ROJA |
| TCV0014 | CLA125/044-6 | CLAVIJA CLA125/044-6, 125AMP, IP67, 3P+T, 440VAC ROJA |
| TCV0015 | TSP16/115-6 | TOMA TSP16/115-6 SOBREPONER 16AMP, 440V, 3P+T+N, ROJA |
| TCV0016 | TAR16/215-6 | TOMA TAR16/215-6 AREA 16AMP, 440V, 3P+T+N, ROJA |
| TCV0017 | TSP32/125-6 | TOMA TSP32/125-6 SOBREPONER 32AMP, 440V, 3P+T+N, ROJA |
| TCV0018 | TAR32/225-6 | TOMA TAR32/225-6 AREA 32AMP, 440V, 3P+T+N, ROJA |
| TCV0019 | TIN32/425-6 | TOMA TIN32/425-6 INCRUSTAR 32AMP, 440V, 3P+T+N, ROJA |
| TCV0020 | TSP63/1355-6 | TOMA TSP63/1355-6 SOBREPONER 63AMP, 440V,3P+T+N, ROJA |
| TCV0021 | CLA16/015-6 | CLAVIJA CLA16/015-6, 16AMP, IP44, 3P+T+N, 440VAC ROJA |
| TCV0022 | CLA32/025-6 | CLAVIJA CLA32/025-6, 32AMP, IP44, 3P+T+N, 440VAC ROJA |
| TCV0023 | CLA63/035-6 | CLAVIJA CLA63/035-6, 63AMP, IP67, 3P+T+N, 440VAC ROJA |
| TCV0024 | TSP16/113-6 | TOMA TSP16/113-6 SOBREPONER, 16AMP, 230V, 2P+T, AZUL |
| TCV0025 | TAR16/213-6 | TOMA TAR16/213-6 AEREA 16AMP, 230V, 2P+T, AZUL |
| TCV0026 | CLA16/013-6 | CLAVIJA CLA16/013-6, 16AMP, IP44 2P+T, 230VAC AZUL |
| TCV0027 | TSP16/114-9 | TOMA TSP16/114-9 SOBREPONER 16AMP, 230V, 3P+T, AZUL |
| TCV0028 | TAR16/214-9 | TOMA TAR16/214-9 AEREA 16AMP, 3P+T, AZUL |
| TCV0029 | TSP32/124-9 | TOMA TSP32/124-9 SOBREPONER 32AMP,3P+T,AZUL |
| TCV0030 | TAR32/224-9 | TOMA TAR32/224-9 AEREA 32AMP, 3P+T, AZUL |
| TCV0031 | TSP63/1345-9 | TOMA TSP63/1345-9 SOBREPONER 63AMP, 230V, 3P+T, AZUL |
| TCV0032 | TIN63/4345-9 | TOMA TIN63/4345-9 INCRUSTAR 63AMP, 230V, 3P+T, AZUL |
| TCV0033 | TAR63/2345-9 | TOMA TAR63/2345-9 AEREA 63AMP, 230V, 3P+T, AZUL |
| TCV0034 | TSP125/1445-9 | TOMA TSP125/144-9 SOBREPONER 125AMP, 230V, 3P, AZUL |
| TCV0035 | TIN125/4445-9 | TOMA TIN125/4445-9 INCRUSTAR 125AMP, 230V, 3P+T, AZUL |
| TCV0036 | TAR125/244-9 | TOMA TAR125/244-9 AEREA 125AMP, 230V, 3P+T, AZUL |
| TCV0037 | CLA16/014-9 | CLAVIJA CLA16/014-9, 16AMP, IP44, 3P+T, 230 VAC AZUL |
| TCV0038 | CLA32/024-9 | CLAVIJA CLA32/024-9, 32AMP, IP 44, 3P+T, 230VAC AZUL |
| TCV0039 | CLA63/034-9 | CLAVIJA CLA63/034-9, 63AMP, IP67, 3P+T, 230VAC AZUL |
| TCV0040 | CLA125/044-9 | CLAVIJA CLA125/044-9, 125AMP, IP67, 3P+T, 230VAC AZUL |
| TCV0041 | TSP16/115-9 | TOMA TSP16/115-9 SOBREPONER 16AMP, 230V, 3P+T+N, AZUL |
| TCV0042 | TAR16/215-9 | TOMA TAR16/215-9 AEREA 16AMP, 230V, 3P+T+N, AZUL |
| TCV0043 | TSP32/125-9 | TOMA TSP32/125-9 SOBREPONER 32AMP, 230V, 3P+T+N, AZUL |
| TCV0044 | TAR32/225-9 | TOMA TAR32/225-9 AEREA 32AMP, 230V, 3P+T+N, AZUL |
| TCV0045 | TSP63/1355-9 | TOMA TSP63/1355-9 SOBREPONER 63AMP, 230V, 3P+T+N, AZUL |
| TCV0046 | TIN63/4355-9 | TOMA TIN63/4355-9 INCRUSTAR 63AMP, 230V, 3P+T+N, AZUL |
| TCV0047 | TAR63/2355-9 | TOMA TAR63/2355-9 AEREA 63AMP, 3P+T+N, AZUL |
| TCV0048 | TSP125/1455-9 | TOMA TSP125/1455-9 SOBREPONER 125AMP, 3P+T+N, AZUL |
| TCV0049 | TIN125/4455-9 | TOMA TIN125/4455-9 INCRUSTAR 125AMP, 3P+T+N, AZUL |
| TCV0050 | TAR125/2455-9 | TOMA TAR125/2455-9 AEREA 125AMP, 3P+T+N, AZUL |
| TCV0051 | CLA16/015-9 | CLAVIJA CLA16/015-9, 16AMP, IP44, 3P+T+N, 230VAC AZUL |
| TCV0052 | CLA32/025-9 | CLAVIJA CLA32/025-9, 32AMP, IP44, 3P+T+N, 230VAC AZUL |
| TCV0053 | CLA63/035-9 | CLAVIJA CLA63/035-9, 63AMP, IP67, 3P+T+N, 230VAC AZUL |
| TCV0054 | CLA125/045-9 | CLAVIJA CLA125/045-9, 125AMP, IP67, 4P+T+N, 230VAC AZUL |
| TCV0057 | TSP125/1455-6 | TOMA TSP125/1455-6 SOBREPONER 125AMP, 440VAC, 125A,ROJA |
| TCV0058 | TIN125/4455-6 | TOMA TIN125/4455-6 INCRUSTAR, 440VAC, 125A, ROJA |
| TCV0059 | TAR125/2455-6 | TOMA TAR125/2455-6 AREA 440VAC, 125A,ROJA |
| TCV0060 | TAR63/2355-6 | TOMA TAR63/2355-6 AREA 440VAC, 63A, ROJA |
| TCV0061 | TIN125/4445-6 | TOMA TIN125/4445-6 INCRUSTAR 440VAC, 125A,ROJA |
| TCV0062 | TIN63/4345-6 | TOMA TIN63/4345-6 INCRUSTAR 440VAC, 63A,ROJA |
| TCV0063 | TIN63/4355-6 | TOMA TIN63/4355-6 INCRUSTAR 440VAC, 63A, ROJA |
| TCV0064 | TIN16/413-6 | TOMA TIN16/413-6 INCRUSTAR 220VAC, 16A,AZUL |
| TCV0065 | TIN16/414-9 | TOMA TIN16/414-9 INCRUSTAR 220VAC, 16A,AZUL |
| TCV0066 | TIN32/424-9 | TOMA TIN32/424-9 INCRUSTAR 220VAC, 32A, AZUL |
| TCV0067 | TIN16/415-9 | TOMA TIN16/415-9 INCRUSTAR 220VAC, 16A,AZUL |
| TCV0068 | TIN32/425-9 | TOMA TIN32/425-9 INCRUSTAR 220VAC, 32A,AZUL |
| TCV0069 | TIN16/415-6 | TOMA TIN16/415-6 INCRUSTAR 440VAC, 16A,ROJA |
| TCV0070 | CLA125/045-6 | CLAVIJA CLA125/045-6, 125AMP,3P+T+N, 440VAC ROJA |
| TCV0077 | TSP16/113-4 | TOMA TSP16/113-4 SOBREPONER 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0078 | TAR16/213-4 | TOMA TAR16/213-4 AEREA 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0079 | TIN16/413-4 | TOMA TIN16/413-4 INCRUSTAR 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0080 | CLA16/013-4 | CLAVIJA CLA16/013-4 16A,110V,2P+T,AMARILLO,IP44 |
| TCV0081 | TSP32/123-4 | TOMA TSP32/123-4, SOBREPONER 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0082 | TAR32/223-4 | TOMA TAR32/223-4 AEREA 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0083 | TIN32/423-4 | TOMA TIN32/423-4 INCRUSTAR 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0084 | CLA32/023-4 | CLAVIJA CLA32/023-4 32A,110V,2P+T,AMARILLO,IP44 |
| TCV0093 | TSP16/1132-4 | TOMA TSP16/1132-4 SOBREPONER 16A,110V,2P+T,AMARILLO,IP67 |
| TCV0094 | TAR16/2132-4 | TOMA TAR16/2132-4 AEREA 16A,110V,2P+T,AMARILLO,IP67 |
| TCV0095 | TIN16/4132-4f78 | TOMA TIN16/4132-4f78 INCRUSTAR 16A,110V,2P+T,AMARILLO,IP6 |
| TCV0096 | CLA16/0132-4 | CLAVIJA CLA16/0132-4 16A,110V,2P+T,AMARILLO,IP67 |
| TCV0097 | TSP32/1232-4 | TOMA TSP32/1232-4, SOBREPONER 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0098 | TAR32/2232-4 | TOMA TAR32/2232-4 AEREA 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0099 | TIN32/4232-4f78 | TOMA TIN32/4232-4F78 INCRUSTAR 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0100 | CLA32/0232-4 | CLAVIJA CLA32/0232-4 32A,110V,2P+T,AMARILLO,IP67 |
| TCV0109 | TSP16/1132-6 | TOMA TSP16/1132-6 SOBREPONER 16A,220V,2P+T,AZUL,IP67 |
| TCV0110 | TAR16/2132-6 | TOMA TAR16/2132-6 AEREA 16A,220V,2P+T,AZUL,IP67 |
| TCV0111 | TIN16/4132-6f78 | TOMA TIN16/4132-6f78 INCRUSTAR 16A,220V,2P+T,AZUL,IP67 |
| TCV0112 | CLA16/0132-6 | CLAVIJA CLA16/0132-6 16A,220V,2P+T,AZUL,IP67 |
| TCV0113 | TSP16/1142-9 | TOMA TSP16/1142-9 SOBREPONER 16A,220V,3P+T,AZUL,IP67 |
| TCV0114 | TAR16/2142-9 | TOMA TAR16/2142-9 AEREA 16A,220V,3P+T,AZUL,IP67 |
| TCV0115 | TIN16/4142-9f78 | TOMA TIN16/4142-9f78 INCRUSTAR 16A,220V,3P+T,AZUL,IP67 |
| TCV0116 | CLA16/0142-9 | CLAVIJA CLA16/0142-9 16A,220V,3P+T,AZUL,IP67 |
| TCV0117 | TSP32/1242-9 | TOMA TSP32/1242-9 SOBREPONER 32A,220V,3P+T,AZUL,IP67 |
| TCV0118 | TAR32/2242-9 | TOMA TAR32/2242-9 AEREA 32A,220V,3P+T,AZUL,IP67 |
| TCV0119 | TIN32/4242-9f78 | TOMA TIN32/4242-9f78 INCRUSTAR 32A,220V,3P+T,AZUL,IP67 |
| TCV0120 | CLA32/0242-9 | CLAVIJA CLA32/0242-9 32A,220V,3P+T,AZUL,IP67 |
| TCV0121 | TSP16/1152-9 | TOMA TSP16/1152-9 SOBREPONER 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0122 | TAR16/2152-9 | TOMA TAR16/2152-9 AEREA 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0123 | TIN16/4152-9f78 | TOMA TIN16/4152-9f78 INCRUSTAR 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0124 | CLA16/0152-9 | CLAVIJA CLA16/0152-9 16A,220V,3P+N+T,AZUL,IP67 |
| TCV0125 | TSP32/1252-9 | TOMA TSP32/1252-9 SOBREPONER 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0126 | TAR32/2252-9 | TOMA TAR32/2252-9 AEREA 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0127 | TIN32/4252-9f78 | TOMA TIN32/4252-9f78 INCRUSTAR 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0128 | CLA32/0252-9 | CLAVIJA CLA32/0252-9 32A,220V,3P+N+T,AZUL,IP67 |
| TCV0129 | TSP16/1142-6 | TOMA TSP16/1142-6 SOBREPONER 16A,440V,3P+T,ROJO,IP67 |
| TCV0130 | TAR16/2142-6 | TOMA TAR16/2142-6 AEREA 16A,440V,3P+T,ROJO,IP67 |
| TCV0131 | TIN16/4142-6F78 | TOMA TIN16/4142-6f78 INCRUSTAR 16A,440V,3P+T,ROJO,IP67 |
| TCV0132 | CLA16/0142-6 | CLAVIJA CLA16/0142-6 16A,440V,3P+T,ROJO,IP67 |
| TCV0133 | TSP32/1242-6 | TOMA TSP32/1242-6 SOBREPONER 32A,440V,3P+T,ROJO,IP67 |
| TCV0134 | TAR32/2242-6 | TOMA TAR32/2242-6 AEREA 32A,440V,3P+T,ROJO,IP67 |
| TCV0135 | TIN32/4242-6f78 | TOMA TIN32/4242-6f78 INCRUSTAR 32A,440V,3P+T,ROJO,IP67 |
| TCV0136 | CLA32/0242-6 | CLAVIJA CLA32/0242-6 32A,440V,3P+T,ROJO,IP67 |
| TCV0137 | TSP16/1152-6 | TOMA TSP16/1152-6 SOBREPONER 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0138 | TAR16/2152-6 | TOMA TAR16/2152-6 AEREA 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0139 | TIN16/4152-6f78 | TOMA TIN16/4152-6f78 INCRUSTAR 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0140 | CLA16/0152-6 | CLAVIJA CLA16/0152-6 16A,440V,3P+N+T,ROJO,IP67 |
| TCV0141 | TSP32/1252-6 | TOMA TSP32/1252-6 SOBREPONER 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0142 | TAR32/2252-6 | TOMA TAR32/2252-6 AEREA 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0143 | TIN32/4252-6f78 | TOMA TIN32/4252-6f78 INCRUSTAR 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0144 | CLA32/0252-6 | CLAVIJA CLA32/0252-6 32A,440V,3P+N+T,ROJO,IP67 |
| TCV0153 | CLA32/023-6 | CLAVIJA CLA32/023-6,32A,230V,2P+T,AZUL,IP44 |
| TCV0154 | TAR32/223-6 | TOMA AEREA TAR32/223-6,32A,230V,2P+T,AZUL,IP44 |
| TCV0155 | TAR16/214-7 | TOMA AEREA TAR16/214-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0156 | TSP16/114-7 | TOMA S/P TSP16/114-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0157 | TIN16/414-7 | TOMA INC.TIN16/414-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0158 | CLA16/014-7 | CLAVIJA CLA16/014-7,16A,500VAC,3P+T,NEGRA,IP44 |
| TCV0159 | TAR32/224-7 | TOMA AEREA TAR32/224-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0160 | TSP32/124-7 | TOMA S/P TSP32/124-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0161 | TIN32/424-7 | TOMA INC.TIN32/424-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0162 | CLA32/024-7 | CLAVIJA CLA32/024-7,32A,500VAC,3P+T,NEGRA,IP44 |
| TCV0163 | TAR63/2345-7 | TOMA AEREA TAR63/2345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0164 | TSP63/1345-7 | TOMA S/P TSP63/1345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0164 | TSP63/1345-7 | TOMA S/P TSP63/1345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0165 | TIN63/4345-7 | TOMA INC.TIN63/4345-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0166 | CLA63/034-7 | CLAVIJA CLA63/034-7,63AMP,3P+T,NEGRA,IP67 |
| TCV0167 | TAR32/2252-7 | TOMA AÉREA TAR32/2252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0168 | TSP32/1252-7 | TOMA S/P TSP32/1252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0169 | TIN32/4252-7 | TOMA INC.TIN32/4252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0170 | CLA32/0252-7 | CLAVIJA CLA32/0252-7,32A,500VAC,3P+N+T,NEGRA,IP67 |
| TCV0171 | TSP32/123-6 | TOMA TSP32/123-6 SOBREPONER 32AMP, 220V, 2P+T, AZUL |
| TCV0172 | TIN32/423-6 | TOMA TIN32/423-6 INCRUSTAR 32A,220V,2P+T,AZUL, IP44 |
| TCV0173 | TAR32/2242-3V | TOMA TAR32/2242-3V AEREA CONTENEDOR 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0174 | TIN32/4242-3F78V | TOMA TIN32/4242-3F78V INCRUSTA CONTENEDOR 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0175 | CLA32/0242-3V | CLAVIJA CLA32/0242-3V CONTENEDOR 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0176 | TSP32/1242-3V | TOMA TSP32/1242-3V SOBREPONER CONT. 32A, 440V, 3P+T, ROJO, IP67 |
| TCV0177 | CLA125/0445-7 | CLAVIJA CLA125/0445-7, 125 AMP, 3P+T, NEGRA, IP67 |
| TCV0178 | TAR125/2445-7 | TOMA AEREA TAR125/2445-7, 125 AMP, 3P+T, IP67 |
| TCV0180 | CLA32/6242-6 | CLAVIJA CLA32/6242-6 32A,440V,3P+T,ROJA,IP67 |
| TCV0181 | CLA32/6242-9 | CLAVIJA CLA32/6242-9 32A,220V,3P+T,AZUL,IP67 |
| TCV0182 | CLA63/634-6 | CLAVIJA CLA63/634-6 63A,440V,3P+T,ROJA,IP67,POWER TWIST |
| TCV0183 | CLA63/634-9 | CLAVIJA CLA63/634-9 63A,220V,3P+T,AZUL,IP67,POWER TWIST |
Relacionados
Las cajas multiservicio VCP están diseñadas para la distribución de energía y el acoplamiento de equipos eléctricos de baja tensión, tanto para aplicaciones interiores como exteriores. Disponibles en 3 tamaños diferentes, con ventanas prefabricadas de 3, 4 y 6 espacios para la instalación de tomas de 16A y 32A.
La sólida carcasa de ABS de alta calidad está probada y certificada acorde a la norma IEC/EN 62208, con grado de protección IP 66/67 y protección al impacto IK08. Estas unidades multiservicio cuentan con una ventana abatible transparente bajo la cual hay espacio suficiente para equipos de hasta 16 módulos.
El modelo caja multiservicio 3 ventanas VCP ofrece una solución eficiente y segura para la gestión de energía en cualquier entorno.
Clavijas, tomacorrientes, entradas y salidas con conexión de media vuelta o seguridad, grado industrial con rendimiento superior, Contactos de una pieza Formado de una sola pieza de latón macizo para reducir la fricción y el sobrecalentamiento., confiabilidad duradera y características respaldadas y garantizadas. Disponible en configuraciones NEMA y no NEMA, hay una conexión para cada aplicación.
Colección completa de dispositivos de cableado herméticos Wetguard, consta de clavijas, tomacorrientes, entradas, salidas y cajas FD para uso en ubicaciones industriales exigentes. Estos dispositivos están diseñados para resistir el abuso en ambientes húmedos y corrosivos en interiores y exteriores.
Copyright © 2023 Laumayer Todos los derechos reservados Medellín – Colombia | by SM DIGITAL
Catálogo VCP Electric
